ViLEP-1500
Applicable Scenarios
- Ultrafiltration membrane with high fouling resistance
- Integrated module and membrane for compact footprint
Design flux
- Operating flux 5–15 LMH
- Sludge concentration 15–30 g/L
Product Introduction
ViLEP-1500 reciprocating membrane product
Submerged ultrafiltration (SMF) using mechanical reciprocation for surface water, secondary effluent and RO pretreatment; design flux 30–50 LMH; handles high turbidity up to 300 ppm; highly integrated for faster install and lower cost.
ViLEP-1500 aeration membrane products
Aerated scrubbing SMF for surface water and RO pretreatment; design flux 30–50 LMH; high turbidity up to 300 ppm; standardized installation reduces lead time and labor.
Membrane Module

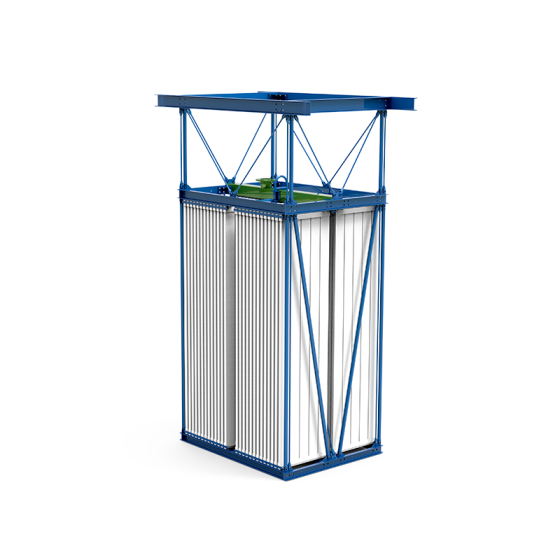

ViLEP-1500 Series R/H

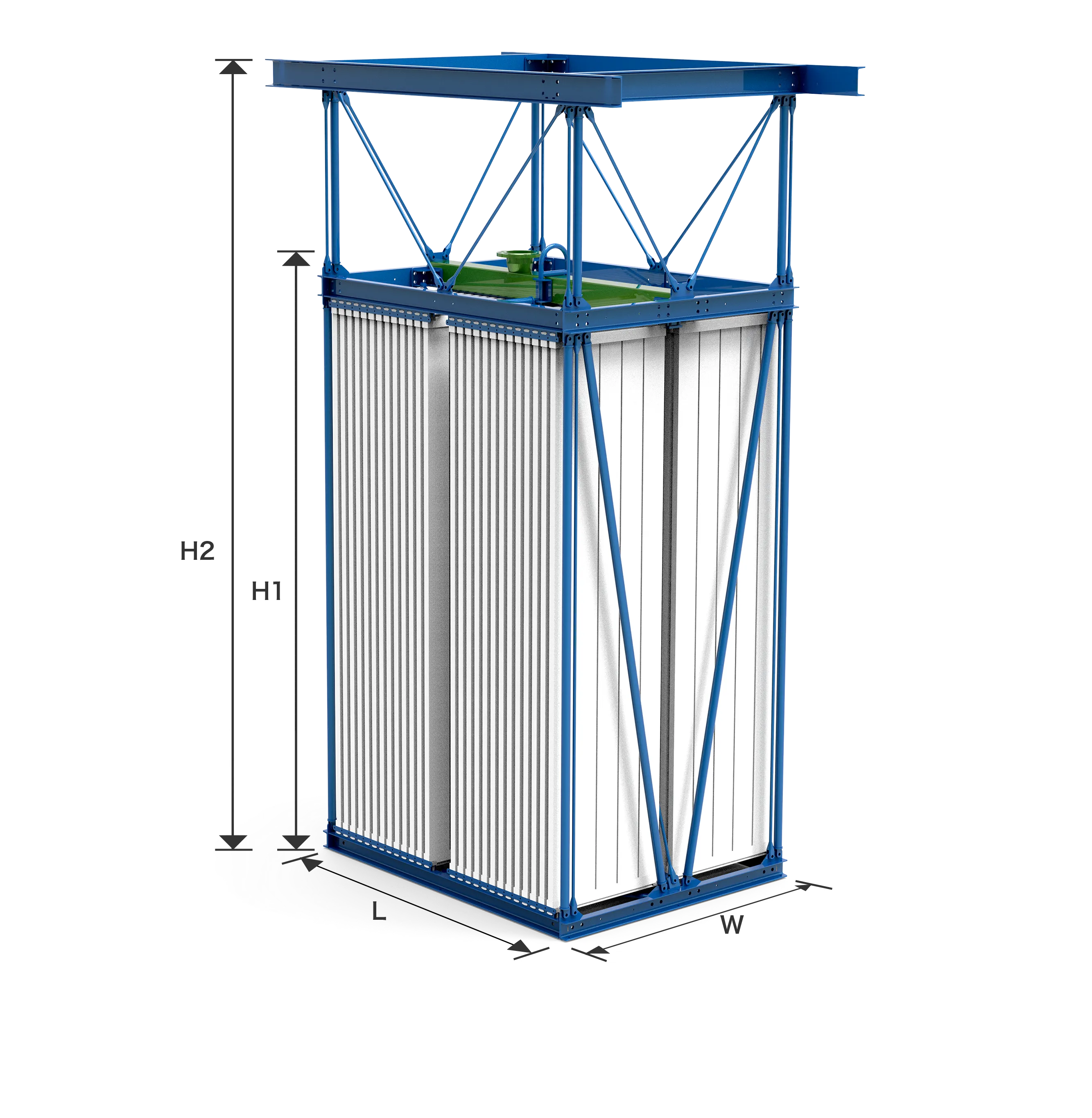

ViLEP-1500-57 => L*W*H1*H2=2220mm*1740mm*3620mm*4720mm
ViLEP-1500 Series A/F

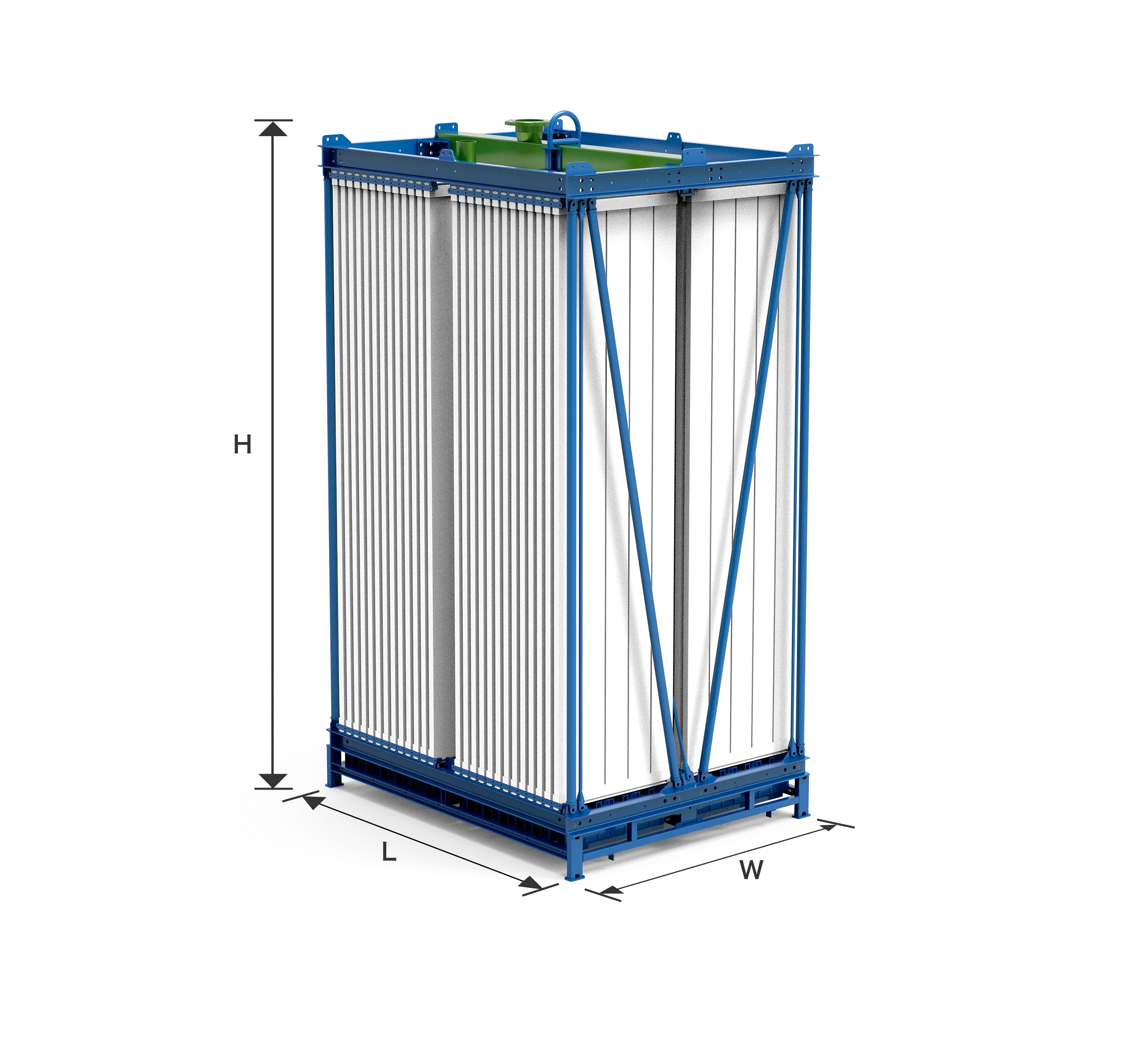

ViLEP-1500-57 => L*W*H1=2220mm*1740mm*3855mm
